Datasheet

04.12.2024
Part n° 101310

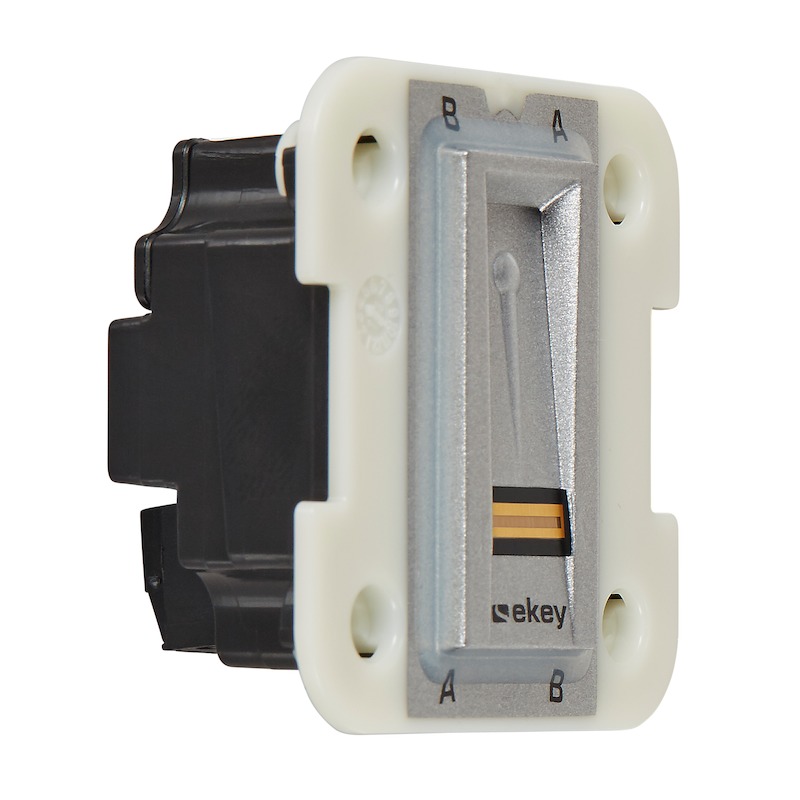

Product name ekey home FS OM I
Product name 2Finger scanner outlet-mounted 99 fingers
EAN code 9120022226019
Customs tariff number 8471 9000
Origin countryAT
Weight: 0.04 kg
Application area
Sales restriction

The ekey home finger scanner outlet-mounted for integration in door stations is a biometric sensor terminal for the registration of fingerprints by means of an RF line sensor from Authentec. This ekey home finger scanner is used to idenjpgy authorized users and subsequently open house doors, apartment doors, garage doors, etc. The finger scanner is intended for use in both domestic and business applications. The ekey home finger scanner outlet-mounted I is designed for fixed flush-mounting installation on immobile components, such as door stations, and for use in protected outdoor areas. To operate the finger scanner, you will also need a compatible control panel and a suitable power supply, plus a matching door station build-in module, bezel, or in-wall mounting frame.

Technical data

Operational data
Supply typ:DC
Maximum supply voltage:24 V
Minimum supply voltage:8 V
Supply voltage rating:12 V
Maximum current consumption:470 mA
Minimum current consumption:100 mA
Current consumption rating:130 mA
Maximum power:4 W
Minimum power:0.8 W
Power rating:1 W
Minimum operating temperature:-25 °C
Maximum operating temperature:70 °C
Maximum humidity:90 %rel
IP code:IP33
Suitable for unprotected outdoor area:false
Suitable for protected outdoor area:yes
Display
Number of buttons:
Type of buttons:
Log memory:
Fingeranzahl:99
FAR:1:10 000 000
FRR:1:100
Recognition period:1 s
Number of codes:
Codelänge max:
Kartenanzahl:
Lifetime in number of operations:
Lifetime in MTBF:
Line frequency:
Battery life in number of access instances:
Battery life when idle:
Efficiency:
Tolerance rated voltage:10%
Maximum number of registration units:
Installed real-time clock:
Type of operation:
Minimum pin code length:
Signaling:
FSuitable for RFID function:
Number of logs:
Mechanical data
Model:Outlet-mounted
Mounting type:In-wall mounting
Minimum mounting height:155 cm
Width:50.4 mm
Length/height:50.4 mm
Depth:30.1 mm
Diameter:
Cylinder standard:
Zylinderlänge Innenseite:
Zylinderlänge Außenseite:
Material:ABS plastic
Surface:Foiled
Color:Steel-gray
UV-resistant:yes
Shock resistance:
Vibration resistance:
Similar RAL^
Mechanical data
Material:
Surface:
Length:
Profile dimensions width:
Profile dimensions depth:
Profile diameter:
Profil wall thickness
ASpacing betwenn fastening brackets:
Additional information:
Software
For application software:
Operating systems:
RAM:
Processor:
Software version:
Conformity
Standards:EN61000-6-2 | EN61000-6-3
Directives:CE2014/30/EU | RoHs2011/65/EU
Battery or Akku
Capacity:
Charging current:
Charging time:
Charging cycles:
Battery type:
Battery maintenance:
Electronic relays
Switching function of electronic relay:
Number of electronic relays:
Switching voltage of electronic relay:
Switching current of electronic relay:
Leckstrom des elektronischen Relais:
Contact form of electronic relay:
Maximum impulse switching time of electronic relay:
Minimale Impulsschaltzeit des elektronischen Relais:
Short-circuit protection of electronic relay:
Overcurrent protection of electronic relay:
Type of switching voltage for electronic relay:
Mechanical relays
Switching voltage of mechanical relay:
Switching current of mechanical relay:
Switching current of mechanical relay:
Contact form of mechanical relay:
Mechanical lifetime in switching cyclesh:
Electrical lifetime in switching cycles:
Maximum impulse switching time of mechanical relay:
Minimum impulse switching time of mechanical relay:
Short-circuit protection of mechanical relay:
Overcurrent protection of mechanical relay:
Spark quenching:
Switching function of mechanical relay:
Type of switching voltage for mechanical relay:
Voltage output
Output voltage type:
Output voltage:
Output voltage tolerance:
Output current
Output power
Output voltage ripple:
Minimum load:
Protection class:
KShort-circuit protection at output:
Overcurrent monitoring at output:
Polarity reversal protection at output:
Voltage output efficiency:
Digital inputs
Number of digital inputs:
Input voltage enabled:
Input voltage disabled:
Maximum input voltage:
Maximum input current:
Activation type:
Sensor
Sensortype:Finger line sensor
Sensor technology:RF
Resolution:500 DPI
Speed:4 cm/s
Communication USB
Number of USB interfaces:
USB standard:
USB connector:
Communication Bluetooth
Bluetooth standard:
Bluetooth class:
Maximum Bluetooth range:
Typical Bluetooth Range:
Communication Ethernet
Number of Ethernet interfaces:
Ethernet interface protoco:
Ethernet bandwidth:
Ethernet connector:
Communication RF
Radio carrier:
Typical radio range:
Radio encryption:
Radio connecto:
RFID
RFID carrier:
Typical RFID range:
RFID standards:
RFID encryption:
Communication RS-232
Number of RS-232 interfaces:
baud rate:
RS-232 cable type:
RS-232 cable length:
RS-232 protocol:
RS-232 encryption::
Communication RS-485
Number of RS-485 interfaces:1
RS-485 baud rate:115,2KBit/s
RS-485 network:Single master
RS-485 cable length:500 m
RS-485 cable type:Half-duplex
RS-485 protocol:ekey home
RS-485 encryption:yes
Communication Wiegand
Number of Wiegand interfaces:
Wiegand communication type:
