Datasheet

04.12.2024
Part n° 101388
Product name ekey FSX IN RFID
Product name 2800 fingers RS-485
EAN code 9120022227085
Customs tariff number 8471 9000
Origin countryAT
Weight: 0.18 kg
Application area
Sales restriction

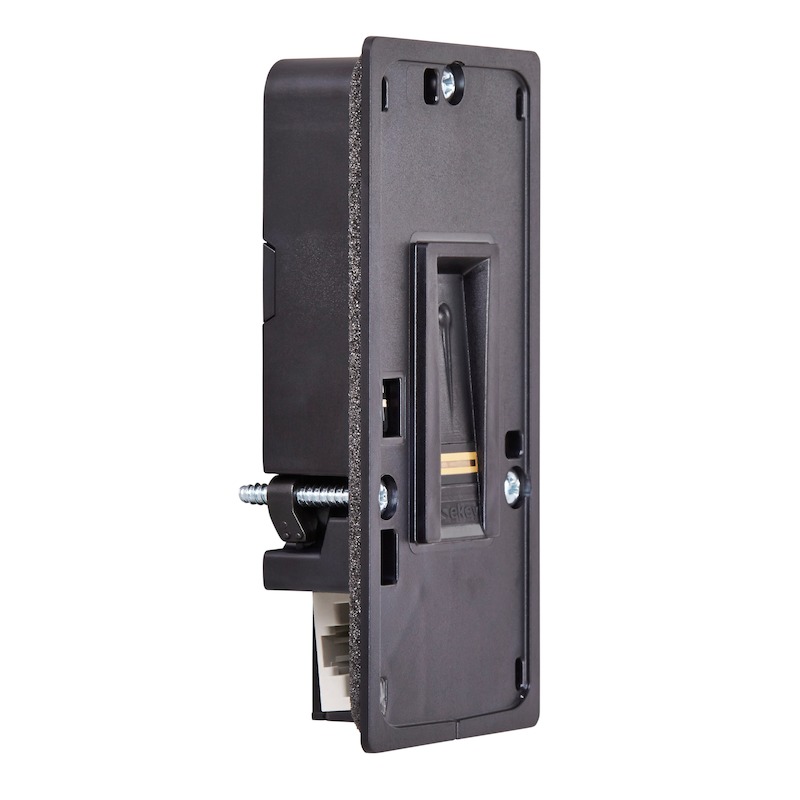

The ekey finger scanner X integra with an RFID function is a biometric sensor terminal for the registration of fingerprints by means of an RF line sensor from Authentec. Up to 800 fingerprints and/or 800 cards can be stored. The finger scanner has an open data interface that allows the finger scanner to be configured and controlled by third-party systems. As a result, the finger scanner can be flexibly integrated into systems other than those offered by ekey. This finger scanner is intended for use in both domestic and business applications. The finger scanner is designed for mounting on mobile and immobile components alike, and for use in unprotected outdoor areas.

Technical data

Operational data
Supply typ:DC
Maximum supply voltage:24 V
Minimum supply voltage:8 V
Supply voltage rating:12 V
Maximum current consumption:300 mA
Minimum current consumption:85 mA
Current consumption rating:90 mA
Maximum power:3 W
Minimum power:1 W
Power rating:1 W
Minimum operating temperature:-25 °C
Maximum operating temperature:70 °C
Maximum humidity:90 %rel
IP code:IP54
Suitable for unprotected outdoor area:yes
Suitable for protected outdoor area:yes
Display
Number of buttons:
Type of buttons:
Log memory:
Fingeranzahl:800
FAR:1:10 000 000
FRR:1:100
Recognition period:1 s
Number of codes:
Codelänge max:
Kartenanzahl:800
Lifetime in number of operations:
Lifetime in MTBF:
Line frequency:
Battery life in number of access instances:
Battery life when idle:
Efficiency:
Tolerance rated voltage:10%
Maximum number of registration units:
Installed real-time clock:
Type of operation:
Minimum pin code length:
Signaling:Acoustic | Visual
FSuitable for RFID function:
Number of logs:
Mechanical data
Model:integra
Mounting type:In-wall mounting
Minimum mounting height:155 cm
Width:45.5 mm
Length/height:91.5 mm
Depth:18.2 mm
Diameter:
Cylinder standard:
Zylinderlänge Innenseite:
Zylinderlänge Außenseite:
Material:A4 stainless steel
Surface:Polished
Color:Steel-gray
UV-resistant:yes
Shock resistance:100 m/s²
Vibration resistance:10 m/s²
Similar RAL^
Mechanical data
Material:
Surface:
Length:
Profile dimensions width:
Profile dimensions depth:
Profile diameter:
Profil wall thickness
ASpacing betwenn fastening brackets:
Additional information:
Software
For application software:
Operating systems:
RAM:
Processor:
Software version:
Conformity
Standards:EN61000-6-2 | EN61000-6-3 | EN60068
Directives:CE2014/30/EU | RoHs2011/65/EU
Battery or Akku
Capacity:
Charging current:
Charging time:
Charging cycles:
Battery type:
Battery maintenance:
Electronic relays
Switching function of electronic relay:
Number of electronic relays:
Switching voltage of electronic relay:
Switching current of electronic relay:
Leckstrom des elektronischen Relais:
Contact form of electronic relay:
Maximum impulse switching time of electronic relay:
Minimale Impulsschaltzeit des elektronischen Relais:
Short-circuit protection of electronic relay:
Overcurrent protection of electronic relay:
Type of switching voltage for electronic relay:
Mechanical relays
Switching voltage of mechanical relay:
Switching current of mechanical relay:
Switching current of mechanical relay:
Contact form of mechanical relay:
Mechanical lifetime in switching cyclesh:
Electrical lifetime in switching cycles:
Maximum impulse switching time of mechanical relay:
Minimum impulse switching time of mechanical relay:
Short-circuit protection of mechanical relay:
Overcurrent protection of mechanical relay:
Spark quenching:
Switching function of mechanical relay:
Type of switching voltage for mechanical relay:
Voltage output
Output voltage type:
Output voltage:
Output voltage tolerance:
Output current
Output power
Output voltage ripple:
Minimum load:
Protection class:
KShort-circuit protection at output:
Overcurrent monitoring at output:
Polarity reversal protection at output:
Voltage output efficiency:
Digital inputs
Number of digital inputs:
Input voltage enabled:
Input voltage disabled:
Maximum input voltage:
Maximum input current:
Activation type:
Sensor
Sensortype:Finger line sensor
Sensor technology:RF
Resolution:500 DPI
Speed:4 cm/s
Communication USB
Number of USB interfaces:
USB standard:
USB connector:
Communication Bluetooth
Bluetooth standard:
Bluetooth class:
Maximum Bluetooth range:
Typical Bluetooth Range:
Communication Ethernet
Number of Ethernet interfaces:
Ethernet interface protoco:
Ethernet bandwidth:
Ethernet connector:
Communication RF
Radio carrier:
Typical radio range:
Radio encryption:
Radio connecto:
RFID
RFID carrier:13,56MHz
Typical RFID range:20 mm
RFID standards:ISO14443A | ISO14443B | ISO15693
RFID encryption:none
Communication RS-232
Number of RS-232 interfaces:
baud rate:
RS-232 cable type:
RS-232 cable length:
RS-232 protocol:
RS-232 encryption::false
Communication RS-485
Number of RS-485 interfaces:1
RS-485 baud rate:9,6 -115,2kBit/s
RS-485 network:Single master
RS-485 cable length:500 m
RS-485 cable type:Half-duplex
RS-485 protocol:ekey module
RS-485 encryption:yes
Communication Wiegand
Number of Wiegand interfaces:
Wiegand communication type:
Wiegand cable length:
Wiegand cable type::
Wiegand protocol::
Configurable Wiegand protocol:
Communication WLAN
WLAN standard:
Maximum WLAN range:
Typical WLAN range:
WLAN bandwidth:
Data rate:
Maximum length of connection lines
Maximum length of output cables:
Maximum length of input cables:
Maximum length of conductors:
Cable
Cable type::
Cable type::
Cable length:
Number of cores:
Core cross section:
Core resistance:
Stranding:
Sheath material:
Sheath diameter:
Cable shield:
Isolation voltage:
Formaldehyde-free:
Halogen-free:
Connector:
Cable transfer
With housing::
Maximum opening angle:
Cable length on the leaf side:
Pin on the leaf side:
Cable length on the frame side:
Pin on the frame side:
Cable shielding:
Number of data cable cores:
Core cross section of data cables:
Number of conductor cores:
Core cross section of conductors::
Data cable rated voltage:
Data cable rated current:
Conductor rated voltage:
Conductor rated current:
Suitable for revolving door drive:
Number of door openings:
Separable when mounted:
Total number of cores:
LEDs
Number of LEDs:
Type of LED voltage:
LED colors:
Maximum voltage in forward direction:
Maximum voltage in reverse direction:
Maximum current in forward direction:
Minimum current in forward direction:
Switches and buttons
Number of switches:
Type of switching function:
Type of switching voltage of switch:
Maximum switching voltage of switch:
Maximum switching current of switch:
