Datasheet

09.10.2024
Part n° 101534
Product name ekey Modul bticino Sfera AWH
Product name 2Build-in module for FS OM I
EAN code 9120022228716
Customs tariff number 3926 9097
Origin countryAT
Weight: 0.095 kg
Application area
Sales restriction

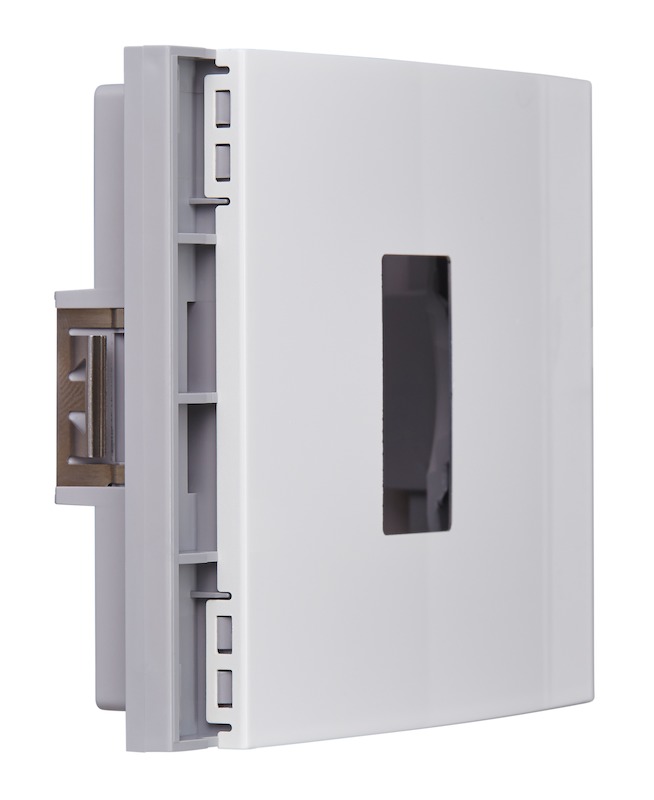

The ekey Modul for bticino Sfera Aluminium is a build-in module in the color ALLWHITE, which is used to cover the ekey finger scanner outlet-mounted for integration in the bticino Sfera Aluminium door station. The ekey Modul is intended for use in both domestic and business applications. The ekey Modul is designed for fixed mounting on the ekey finger scanner outlet-mounted for integration in the bticino Sfera Aluminium door station, and for use in unprotected outdoor areas. As a component of the ekey finger scanner outlet-mounted for integration, this ekey Modul can only be used in conjunction with this particular product.
