Datasheet

24.05.2024
Part n° 101597
Product name ekey CAB AA 1.5 m/5 x 0.14 SH/CP35
Product name 2SH/CP35
EAN code 9120022229508
Customs tariff number 8544 4290
Origin countryHU
Weight: 0.028 kg
Application area
Sales restriction

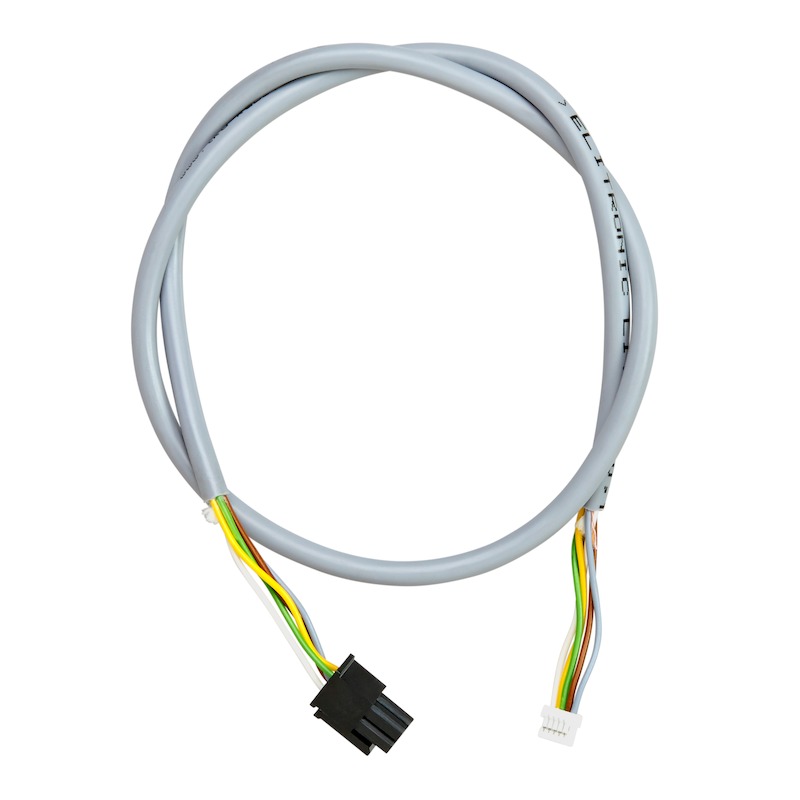

This ekey cable AA is a 1.5 m data and power cable that is ready to plug in and has 5 cores that are each 0.14 mm² in diameter, a JST SH pin on the finger scanner side, and a CP35 pin on the control panel side. This cable AA is used to connect the ekey finger scanner arte to the ekey control panel integra plus. The ekey cable AA is intended for use in both domestic and business applications. The ekey cable AA is designed for fixed mounting in doors and for use in protected interior areas. The ekey cable AA is an optional accessory part.
