Datasheet

07.11.2024
Part n° 101807
Product name ekey mounting frame FS IN BeM GL WHI LED
Product name 2with bell module glass white, LED
EAN code 9120068251020
Customs tariff number 8473 3080
Origin countryAT
Weight: 0.35 kg
Application area
Sales restriction

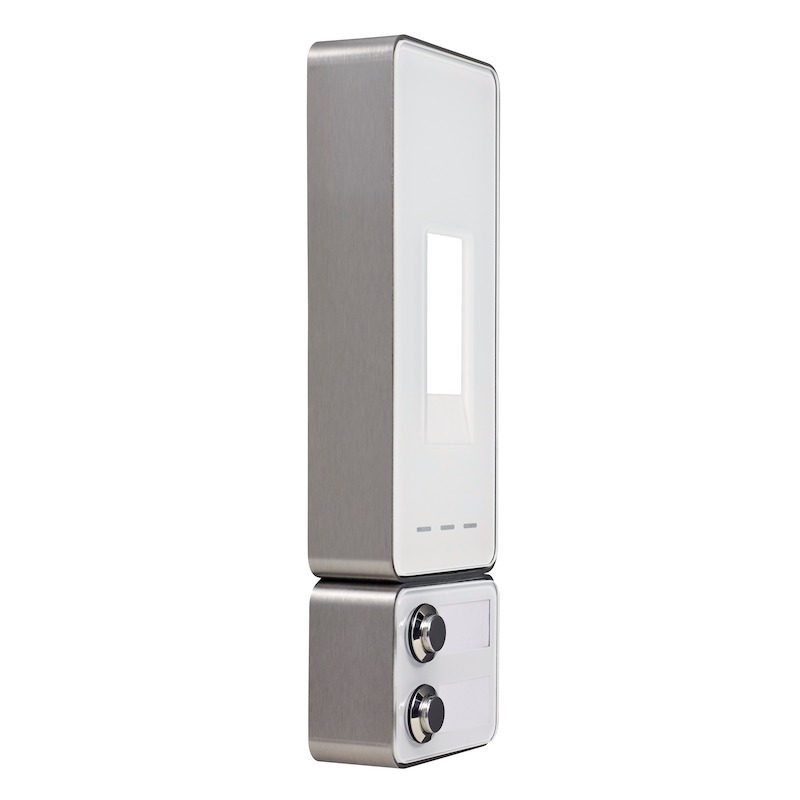

The ekey mounting frame made from stainless steel with glass front in white, bell module, and alarm LEDs is an accessory part for the wall mounting of the ekey finger scanner integra. The bell module includes 2 buttons used to trigger a bell electronically and associated nameplates. 3 LEDs are provided that can be controlled separately and used for the signaling of intrusion alarm system statuses. In addition to this, the ekey mounting frame provides protection against inadvertent mechanical stress. The ekey mounting frame is intended for use in both domestic and business applications. The ekey mounting frame is designed for fixed mounting in masonry and for use in unprotected outdoor areas.

Technical data

Operational data
Supply typ:
Maximum supply voltage:
Minimum supply voltage:
Supply voltage rating:
Maximum current consumption:
Minimum current consumption:
Current consumption rating:
Maximum power:
Minimum power:
Power rating:
Minimum operating temperature:
Maximum operating temperature:
Maximum humidity:
IP code:IP44
Suitable for unprotected outdoor area:yes
Suitable for protected outdoor area:yes
Display
Number of buttons:
Type of buttons:
Log memory:
Fingeranzahl:
FAR:
FRR:
Recognition period:
Number of codes:
Codelänge max:
Kartenanzahl:
Lifetime in number of operations:
Lifetime in MTBF:
Line frequency:
Battery life in number of access instances:
Battery life when idle:
Efficiency:
Tolerance rated voltage:
Maximum number of registration units:
Installed real-time clock:
Type of operation:
Minimum pin code length:
Signaling:
FSuitable for RFID function:yes
Number of logs:
Mechanical data
Model:Wall-mounted
Mounting type:Wall-mounted
Minimum mounting height:
Width:53.5 mm
Length/height:171 mm
Depth:24 mm
Diameter:
Cylinder standard:
Zylinderlänge Innenseite:
Zylinderlänge Außenseite:
Material:Glass | stainless steel V2A
Surface:Brushed | Polished
Color:White
UV-resistant:yes
Shock resistance:
Vibration resistance:
Similar RAL^
Mechanical data
Material:
Surface:
Length:
Profile dimensions width:
Profile dimensions depth:
Profile diameter:
Profil wall thickness
ASpacing betwenn fastening brackets:
Additional information:
