Datasheet

08.10.2024
Part n° 101972
Product name ekey CAB AA 4 m/4 x 0.25 M5/CP35
Product name 2Length 4 m
EAN code 9120068251891
Customs tariff number 8544 4290
Origin countryHU
Weight: 0.07 kg
Application area
Sales restriction

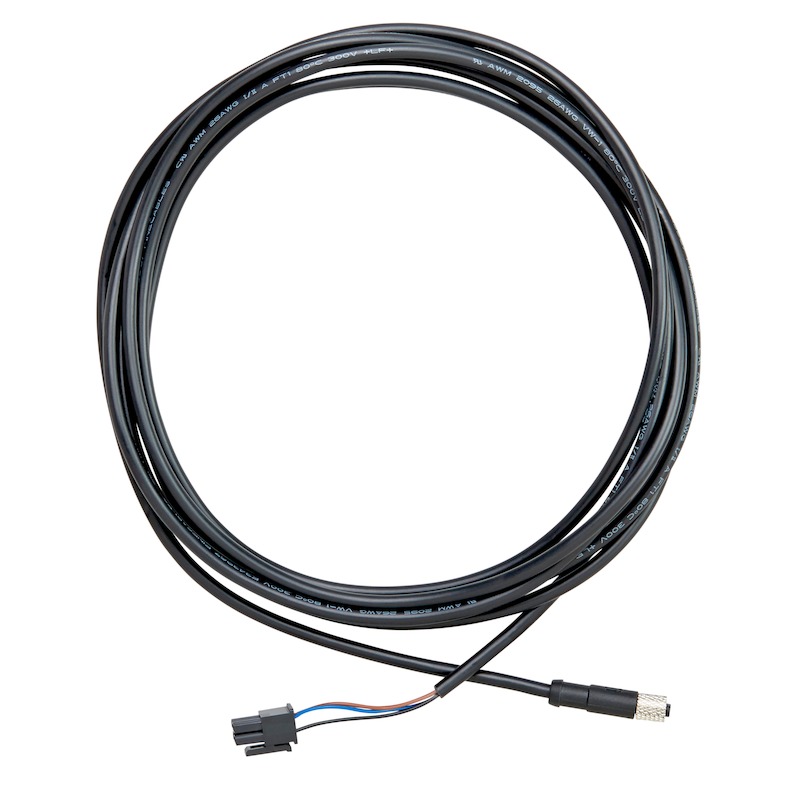

This ekey cable AA is a 4 m long, separable data and power cable that is ready to plug in and has 4 cores that are each 0.25 mm² in diameter, a CP35 pin on the control panel side, and an M5 pin. This cable AA is used to connect the ekey finger scanner arte to the ekey control panel integra plus and facilitates mounting in door handles. For a complete ekey cable AA, it is necessary to combine this cable with a second cable that has an SH pin on the control panel side and an M5 pin. The maximum cable length must not exceed 5 m. The ekey cable AA is intended for use in both domestic and business applications. The ekey cable AA is designed for fixed mounting in doors and for use in protected interior areas. The ekey cable AA is an optional accessory part.
