Datasheet

27.05.2024
Part n° 102095
Product name Test adapter 230 V/24 VDC/1 A
Product name 2for testing door functionality
EAN code 9120068255417
Customs tariff number 8504 4095
Origin countryCN
Weight: 0.14 kg
Application area
Sales restriction

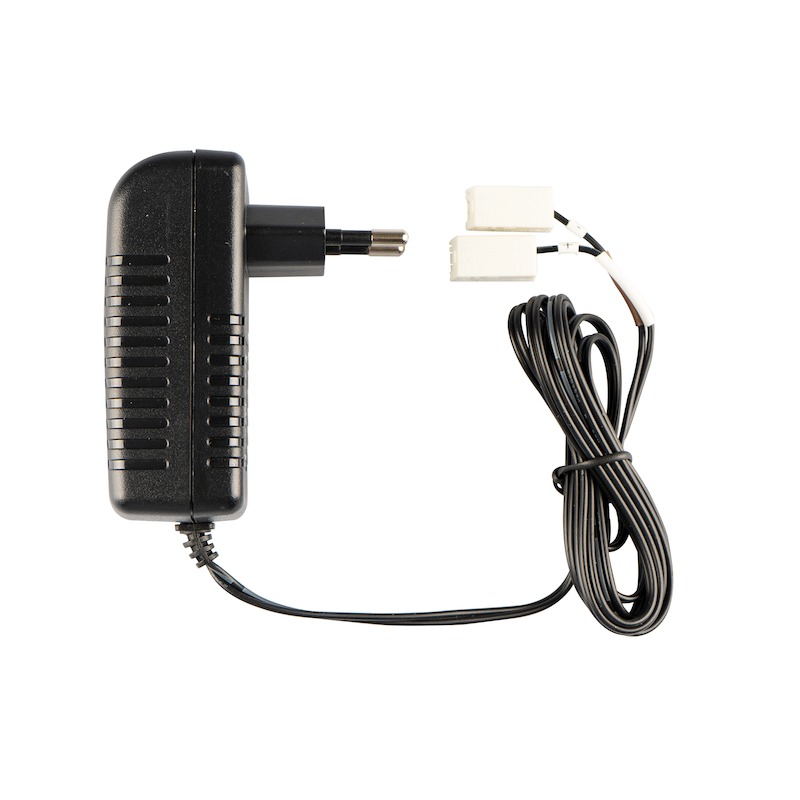

This test adapter with an input voltage of 230 VAC, an output voltage of 24 VDC, and an output current of 1 A can be used to test door functionality.

Technical data

Operational data
Supply typ:AC
Maximum supply voltage:240 V
Minimum supply voltage:100 V
Supply voltage rating:
Maximum current consumption:
Minimum current consumption:
Current consumption rating:1000 mA
Maximum power:
Minimum power:
Power rating:24 W
Minimum operating temperature:0 °C
Maximum operating temperature:40 °C
Maximum humidity:90 %rel
IP code:IP20
Suitable for unprotected outdoor area:
Suitable for protected outdoor area:
Display
Number of buttons:
Type of buttons:
Log memory:
Fingeranzahl:
FAR:
FRR:
Recognition period:
Number of codes:
Codelänge max:
Kartenanzahl:
Lifetime in number of operations:
Lifetime in MTBF:
Line frequency:
Battery life in number of access instances:
Battery life when idle:
Efficiency:
Tolerance rated voltage:
Maximum number of registration units:
Installed real-time clock:
Type of operation:
Minimum pin code length:
Signaling:
FSuitable for RFID function:
Number of logs:
Mechanical data
Model:Plug-in unit
Mounting type:On socket
Minimum mounting height:
Width:48 mm
Length/height:85 mm
Depth:50 mm
Diameter:
Cylinder standard:
Zylinderlänge Innenseite:
Zylinderlänge Außenseite:
Material:PC plastic
Surface:Uncoated
Color:Black
UV-resistant:
Shock resistance:
Vibration resistance:
Similar RAL^
Mechanical data
Material:
Surface:
Length:
Profile dimensions width:
Profile dimensions depth:
Profile diameter:
Profil wall thickness
ASpacing betwenn fastening brackets:
Additional information:
Software
For application software:
Operating systems:
RAM:
Processor:
Software version:
Conformity
Standards:EN55020:2007 | EN55013:2001+A1+A2 | EN61000-3-2:2006+A1+A2 | EN61000-3-3:2008
Directives:CE2014/30/EU | LVD2006/95/EC | RoHs2011/65/EU
Battery or Akku
Capacity:
Charging current:
Charging time:
Charging cycles:
Battery type:
Battery maintenance:
Electronic relays
Switching function of electronic relay:
Number of electronic relays:
Switching voltage of electronic relay:
Switching current of electronic relay:
Leckstrom des elektronischen Relais:
Contact form of electronic relay:
Maximum impulse switching time of electronic relay:
Minimale Impulsschaltzeit des elektronischen Relais:
Short-circuit protection of electronic relay:
Overcurrent protection of electronic relay:
Type of switching voltage for electronic relay:
Mechanical relays
Switching voltage of mechanical relay:
Switching current of mechanical relay:
Switching current of mechanical relay:
Contact form of mechanical relay:
Mechanical lifetime in switching cyclesh:
Electrical lifetime in switching cycles:
Maximum impulse switching time of mechanical relay:
Minimum impulse switching time of mechanical relay:
Short-circuit protection of mechanical relay:
Overcurrent protection of mechanical relay:
Spark quenching:
Switching function of mechanical relay:
Type of switching voltage for mechanical relay:
Voltage output
Output voltage type:DC
Output voltage:24 V
Output voltage tolerance:5%
Output current1000 mA
Output power24 W
Output voltage ripple:150 mV
Minimum load:10 mA
Protection class:2
KShort-circuit protection at output:yes
Overcurrent monitoring at output:yes
Polarity reversal protection at output:
Voltage output efficiency:85%
