Datasheet

07.11.2024
Part n° 105191
Product name ekey home set IN DRM 2 CV KNX
Product name 2with home converter KNX
EAN code 9120068254601
Customs tariff number 8471 9000
Origin countryAT
Weight: 0.95 kg
Application area
Sales restriction

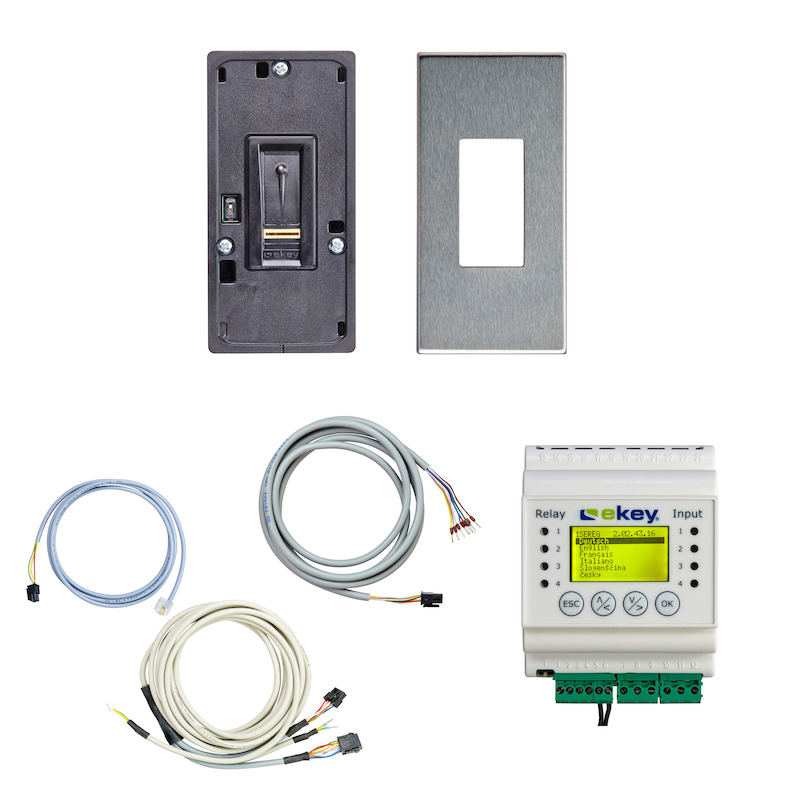

The ekey home set with a fingerscanner integra and a control panel DRM 2 includes a biometric sensor terminal for the registration of fingerprints by means of an RF line sensor from Authentec and a control panel for DIN-rail mounting, which can control two devices by means of its two relays. The set is intended for use in both domestic and business applications. The ekey home finger scanner integra is designed for fixed mounting on moving parts such as doors and for use in unprotected outdoor areas. The ekey home control panel DRM 2 is designed for fixed mounting on a DIN rail, such as in a distribution box, and for use in protected interior areas. The ekey home converter KNX RS-485 is used to trigger functions in home automation systems based on the KNX home automation bus. The functions are triggered by a recognized finger on the ekey home or ekey multi system. Even an unrecognized finger can trigger specific functions. The smart home's behavior can therefore be adapted to the person entering. The ekey home converter KNX RS-485 is designed for DIN rail mounting in a distribution box on a 35 mm DIN rail and for use in protected interior areas. To operate the converter, you will also need a suitable power supply and the product database for the ETS programming environment. ATTENTION: For the converter to function in conjunction with finger scanners and control panels, the latter must have hardware and software versions released since July 2016 installed. Refer to Versionshistorie_CV_KNX.xls
