Datasheet

15.09.2024
Part n° 105192
Product name ekey home set IN DRM 2 CV LAN
Product name 2with home converter LAN RS-485
EAN code 9120068255028
Customs tariff number 8471 9000
Origin countryAT
Weight: 0.94 kg
Application area
Sales restriction

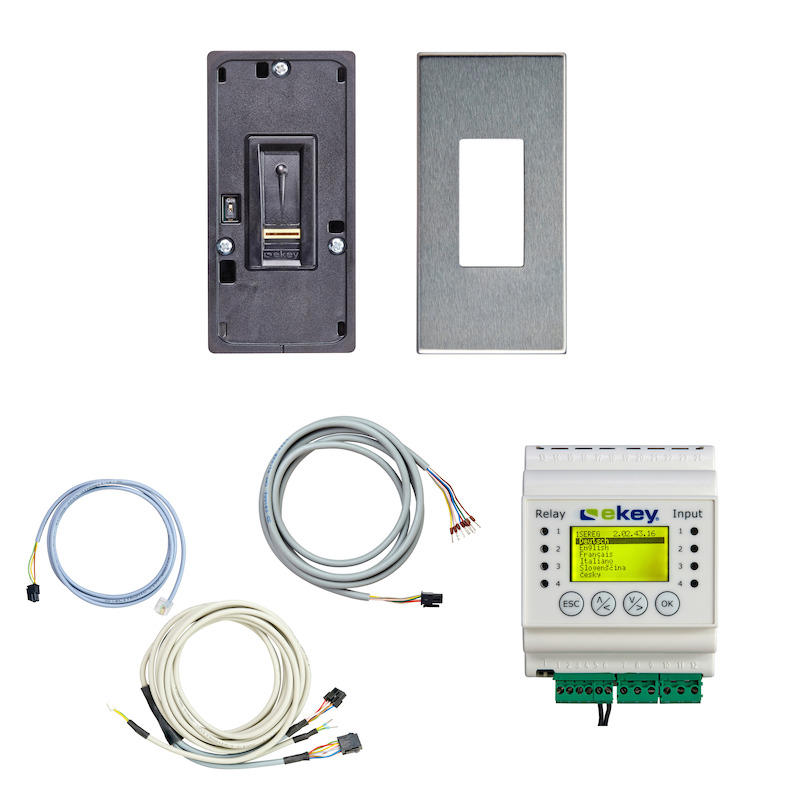

The ekey home set with a fingerscanner integra and a control panel DRM 2 includes a biometric sensor terminal for the registration of fingerprints by means of an RF line sensor from Authentec and a control panel for DIN-rail mounting, which can control two devices by means of its two relays. The set is intended for use in both domestic and business applications. The ekey home finger scanner integra is designed for fixed mounting on moving parts such as doors and for use in unprotected outdoor areas. The ekey home control panel DRM 2 is designed for fixed mounting on a DIN rail, such as in a distribution box, and for use in protected interior areas. The ekey home converter LAN RS-485 converts the internal ekey RS-485 protocol into a UDP protocol. This converter is used to send data in the UDP protocol to a definable data receiver via Ethernet, e.g., for the purpose of building automation. The transmission of the data is initiated when authorized access is recognized on an ekey home finger scanner or when there is a refusal. The ekey home converter LAN RS-485 is designed for DIN rail mounting in a distribution box on a 35 mm DIN rail and for use in protected interior areas. To operate the converter, you will also need a suitable power supply.
