Datasheet

04.12.2024
Part n° 105291
Product name ekey home set KP DRM 2 CV KNX
Product name 2with home converter KNX
EAN code 9120068255035
Customs tariff number 8471 9000
Origin countryAT
Weight: 0.5 kg
Application area
Sales restriction

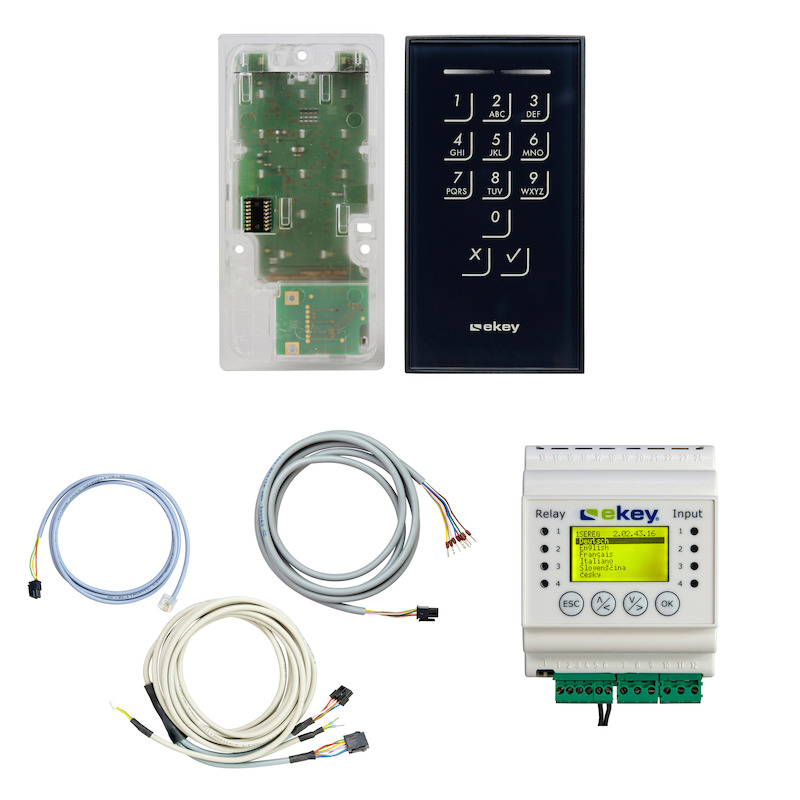

The ekey home set with a keypad integra and a control panel DRM 2 includes a code pad with a capacitive touchpad for the input of access codes and a control panel for DIN-rail mounting, which can control two devices by means of its two relays. The set is intended for use in both domestic and business applications. The ekey home keypad integra is designed for fixed mounting on moving parts such as doors and for use in unprotected outdoor areas. The ekey home control panel DRM 2 is designed for fixed mounting on a DIN rail, such as in a distribution box, and for use in protected interior areas. The ekey home converter KNX RS-485 is used to trigger functions in home automation systems based on the KNX home automation bus. The functions are triggered by a recognized code on the ekey home or ekey multi system. Even an unrecognized code can trigger specific functions. The smart home's behavior can therefore be adapted to the person entering. The ekey home converter KNX RS-485 is designed for DIN rail mounting in a distribution box on a 35 mm DIN rail and for use in protected interior areas. To operate the converter, you will also need a suitable power supply and the product database for the ETS programming environment. ATTENTION: For the converter to function in conjunction with finger scanners and control panels, the latter must have hardware and software versions released since July 2016 installed. Refer to Versionshistorie_CV_KNX.xls
