Datasheet

07.11.2024
Part n° 201702
Product name ekey dLine set timber doors
Product name 2ekey dLine set for timber doors
EAN code 9120068256452
Customs tariff number 8471 9000
Origin countryAT
Weight: 0.27 kg
Application areaUse in domestic and business applications
Sales restrictionEuropa

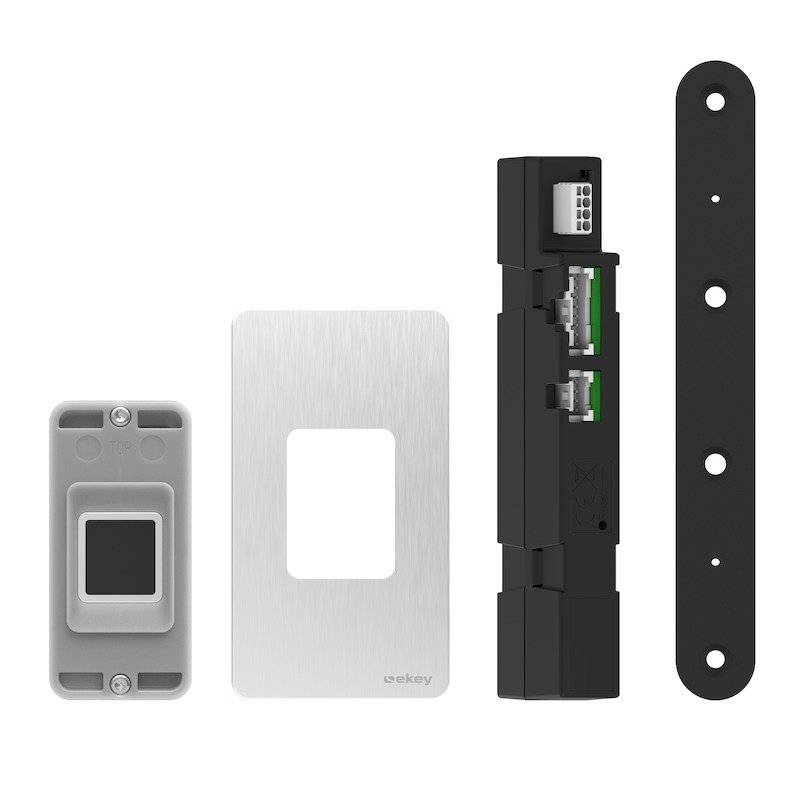

The ekey dLine set with the ekey dLine fingerprint scanner and the ekey dLine control unit is used to recognize authorized persons and then open front doors, apartment doors, garage doors, etc. This ekey dLine set is intended for built-in fitting in the door leaf by timber doors. For operation, you will also need a suitable power supply and the ekey bionyx app.

Technical data

Operational data
Supply typ:DC
Maximum supply voltage:30 V
Minimum supply voltage:10 V
