Datasheet

08.10.2024
Part n° 100460

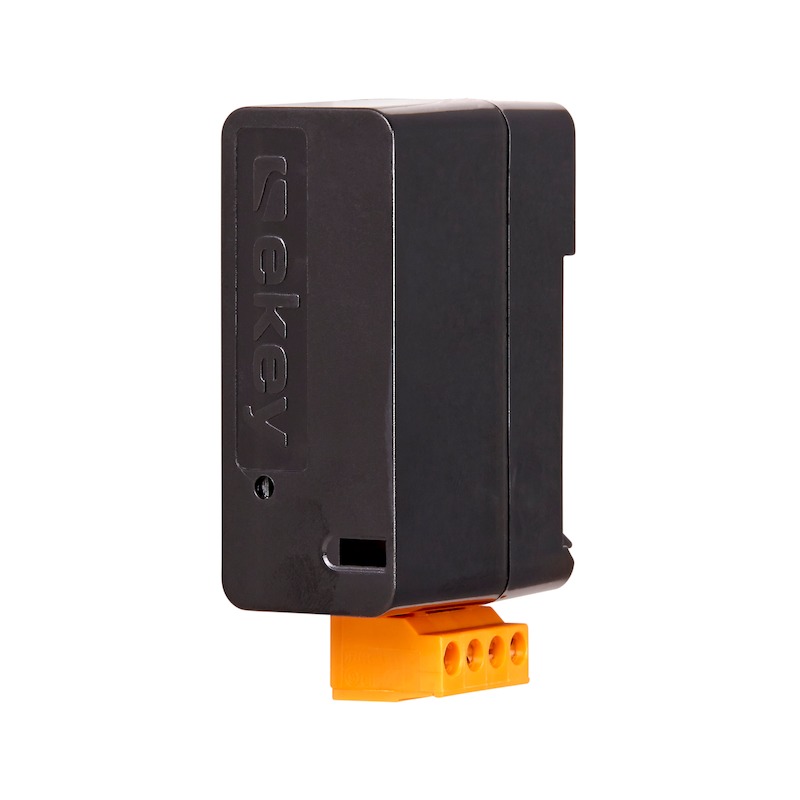

Product name ekey home CV LAN RS-485
Product name 2ekey home converter LAN
EAN code 9120022221342
Customs tariff number 8473 3080
Origin countryAT
Weight: 0.06 kg
Application area
Sales restriction

The ekey home converter LAN RS-485 converts the internal ekey RS-485 protocol into a UDP protocol. This converter is used to send data in the UDP protocol to a definable data receiver via Ethernet, e.g., for the purpose of building automation. The transmission of the data is initiated when authorized access is recognized on an ekey home or multi finger scanner or when there is a refusal. This converter is intended for use in both domestic and business applications. The ekey home converter LAN RS-485 is designed for DIN rail mounting in a distribution box on a 35 mm DIN rail and for use in protected interior areas. To operate the converter, you will also need a compatible finger scanner and control panel, and a suitable power supply.

Technical data

Operational data
Supply typ:DC
Maximum supply voltage:24 V
Minimum supply voltage:8 V
Supply voltage rating:
Maximum current consumption:
Minimum current consumption:
Current consumption rating:42 mA
Maximum power:
Minimum power:
Power rating:1 W
Minimum operating temperature:0 °C
Maximum operating temperature:70 °C
Maximum humidity:90 %rel
IP code:IP20
Suitable for unprotected outdoor area:
Suitable for protected outdoor area:
DisplayNone
Number of buttons:
Type of buttons:
Log memory:
Fingeranzahl:
FAR:
FRR:
Recognition period:
Number of codes:
Codelänge max:
Kartenanzahl:
Lifetime in number of operations:
Lifetime in MTBF:
Line frequency:
Battery life in number of access instances:
Battery life when idle:
Efficiency:
Tolerance rated voltage:
Maximum number of registration units:
Installed real-time clock:
Type of operation:
Minimum pin code length:
Signaling:
FSuitable for RFID function:
Number of logs:
Mechanical data
Model:DIN-rail mounted
Mounting type:DIN rail | In control panel WM
Minimum mounting height:
Width:25 mm
Length/height:60 mm
Depth:42 mm
Diameter:
Cylinder standard:
Zylinderlänge Innenseite:
Zylinderlänge Außenseite:
Material:PC plastic
Surface:Uncoated
Color:Black
UV-resistant:
Shock resistance:
Vibration resistance:
Similar RAL^
Mechanical data
Material:
Surface:
Length:
Profile dimensions width:
Profile dimensions depth:
Profile diameter:
Profil wall thickness
ASpacing betwenn fastening brackets:
Additional information:
Software
For application software:
Operating systems:
RAM:
Processor:
Software version:
Conformity
Standards:EN61000-6-2 | EN61000-6-3
Directives:CE2014/30/EU | RoHs2011/65/EU
Battery or Akku
Capacity:
Charging current:
Charging time:
Charging cycles:
Battery type:
Battery maintenance:
Electronic relays
Switching function of electronic relay:
Number of electronic relays:
Switching voltage of electronic relay:
Switching current of electronic relay:
Leckstrom des elektronischen Relais:
Contact form of electronic relay:
Maximum impulse switching time of electronic relay:
Minimale Impulsschaltzeit des elektronischen Relais:
Short-circuit protection of electronic relay:
Overcurrent protection of electronic relay:
Type of switching voltage for electronic relay:
Mechanical relays
Switching voltage of mechanical relay:
Switching current of mechanical relay:
Switching current of mechanical relay:
Contact form of mechanical relay:
Mechanical lifetime in switching cyclesh:
Electrical lifetime in switching cycles:
Maximum impulse switching time of mechanical relay:
Minimum impulse switching time of mechanical relay:
Short-circuit protection of mechanical relay:
Overcurrent protection of mechanical relay:
Spark quenching:
Switching function of mechanical relay:
Type of switching voltage for mechanical relay:
Voltage output
Output voltage type:
Output voltage:
Output voltage tolerance:
Output current
Output power
Output voltage ripple:
Minimum load:
Protection class:
KShort-circuit protection at output:
Overcurrent monitoring at output:
Polarity reversal protection at output:
Voltage output efficiency:
Digital inputs
Number of digital inputs:
Input voltage enabled:
Input voltage disabled:
Maximum input voltage:
Maximum input current:
Activation type:
Sensor
Sensortype:
Sensor technology:
Resolution:
Speed:
Communication USB
Number of USB interfaces:
USB standard:
USB connector:
Communication Bluetooth
Bluetooth standard:
Bluetooth class:
Maximum Bluetooth range:
Typical Bluetooth Range:
Communication Ethernet
Number of Ethernet interfaces:1
Ethernet interface protoco:UDP
Ethernet bandwidth:
Ethernet connector:RJ45 Buchse
Communication RF
Radio carrier:
Typical radio range:
Radio encryption:
Radio connecto:
RFID
RFID carrier:
Typical RFID range:
RFID standards:
RFID encryption:
Communication RS-232
Number of RS-232 interfaces:
baud rate:
RS-232 cable type:
RS-232 cable length:
RS-232 protocol:
RS-232 encryption::
Communication RS-485
Number of RS-485 interfaces:1
RS-485 baud rate:115,2KBit/s
RS-485 network:Single master
RS-485 cable length:500 m
RS-485 cable type:Half-duplex
RS-485 protocol:ekey home
RS-485 encryption:yes
Communication Wiegand
Number of Wiegand interfaces:
Wiegand communication type:
