Datasheet

19.05.2024
Part n° 101876
Product name ekey cable set micro plus KFV_A effeff CTS
Product name 2Adapter cable + connection cable
EAN code 9120068251419
Customs tariff number 8544 4290
Origin countryHU
Weight: 0.75 kg
Application area
Sales restriction

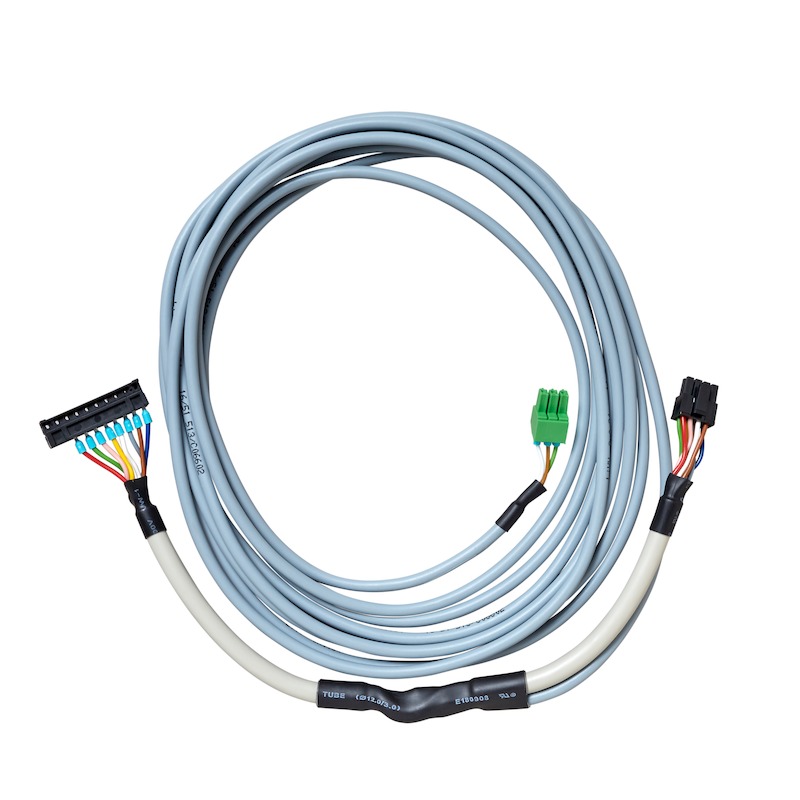

The ekey cable set micro plus KFV_A effeff CTS connects the control panel micro plus and the KFV Genius A motorized lock with the cable transfer from Assa Abloy (effeff). This cable set is intended for use in both domestic and business applications. This cable set is designed for fixed mounting in doors and for use in protected interior areas. The ekey cable set micro plus KFV_A effeff CTS is an optional component that can only be used in conjunction with the ekey control panel micro plus, the KFV Genius A motorized lock and the cable transfer from Assa Abloy (effeff).
