Datasheet
04.12.2024Part n° | 102020 |
Product name | ekey net FS S OM I BL RFID |
Product name 2 | Finger scanner outlet-mounted black 40 fingers |
EAN code | 9120068252577 |
Customs tariff number | 8471 9000 |
Origin country | AT |
Weight: | 0.06 kg |

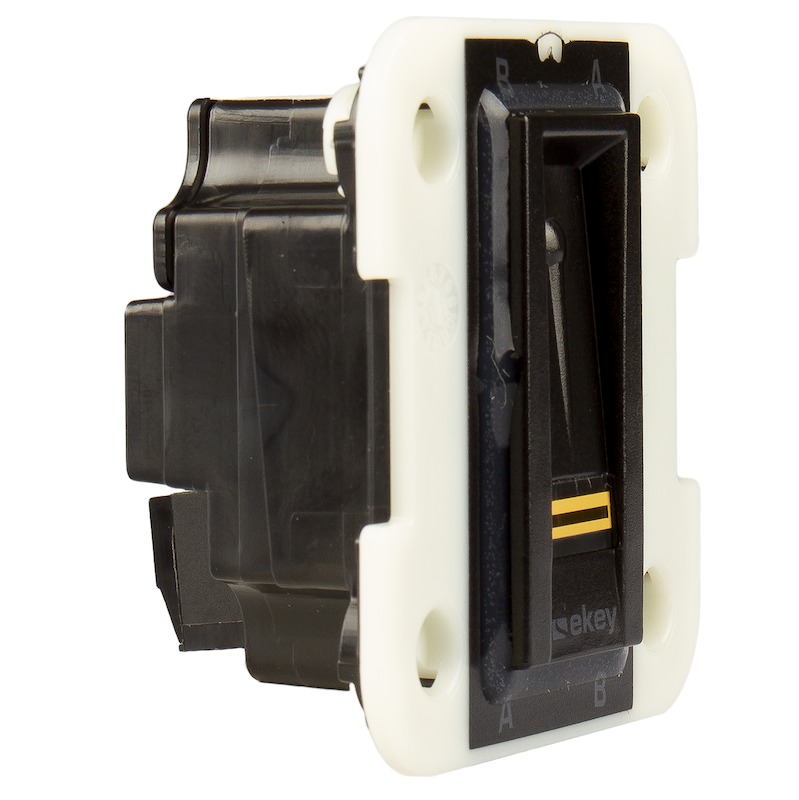

The ekey net finger scanner S outlet-mounted black for integration with RFID functionality is a biometric sensor terminal for the registration of fingerprints by means of an RF line sensor from Authentec. Up to 40 fingerprints and 40 cards can be stored. This finger scanner doubles up as an RFID terminal that can be used with RFID cards. This ekey net finger scanner is used to idenjpgy authorized users and subsequently open building doors, workplace doors, garage doors, etc. The finger scanner is intended for use in both domestic and business applications. The ekey net finger scanner S outlet-mounted I black RFID is designed for fixed flush-mounting installation on immobile components, such as door stations, and for use in protected outdoor areas. To operate the finger scanner, you will also need a compatible control panel, an ekey net converter LAN, a suitable power supply, the full ekey net software and a suitable door station build-in module, bezel or mounting frame, as well as RFID cards.
Operational data | |
---|---|
Supply typ: | DC |
Maximum supply voltage: | 24 V |
Minimum supply voltage: | 8 V |
Supply voltage rating: | 12 V |
Maximum current consumption: | 470 mA |
Minimum current consumption: | 100 mA |
Current consumption rating: | 130 mA |
Maximum power: | 4 W |
Minimum power: | 0.8 W |
Power rating: | 1 W |
Minimum operating temperature: | -25 °C |
Maximum operating temperature: | 70 °C |
Maximum humidity: | 90 %rel |
IP code: | IP33 |
Suitable for unprotected outdoor area: | false |
Suitable for protected outdoor area: | yes |
Fingeranzahl: | 40 |
FAR: | 1:10 000 000 |
FRR: | 1:100 |
Recognition period: | 1 s |
Kartenanzahl: | 40 |
Tolerance rated voltage: | 10% |
Signaling: | Visual | Acoustic |
Mechanical data | |
---|---|
Model: | Outlet-mounted |
Mounting type: | Control panel |
Minimum mounting height: | 155 cm |
Width: | 50.4 mm |
Length/height: | 50.4 mm |
Depth: | 30.1 mm |
Material: | ABS plastic |
Surface: | Foiled |
Color: | Black |
UV-resistant: | yes |
Conformity | |
---|---|
Standards: | EN61000-6-2 | EN61000-6-3 |
Directives: | CE2014/30/EU | RoHs2011/65/EU |
Sensor | |
---|---|
Sensortype: | Finger line sensor |
Sensor technology: | RF |
Resolution: | 500 DPI |
Speed: | 4 cm/s |
RFID | |
---|---|
RFID carrier: | 13,56MHz |
Typical RFID range: | 20 mm |
RFID standards: | ISO14443A | ISO14443B | ISO15693 |
RFID encryption: | MIFARE DESFire EV1 |
Communication RS-485 | |
---|---|
Number of RS-485 interfaces: | 1 |
RS-485 baud rate: | 230,5KBit/s |
RS-485 network: | Single master |
RS-485 cable length: | 500 m |
RS-485 cable type: | Half-duplex |
RS-485 protocol: | ekey net |
RS-485 encryption: | yes |
Maximum length of connection lines | |
---|---|
Maximum length of conductors: | 30 m |
